PUNCHES & DIES

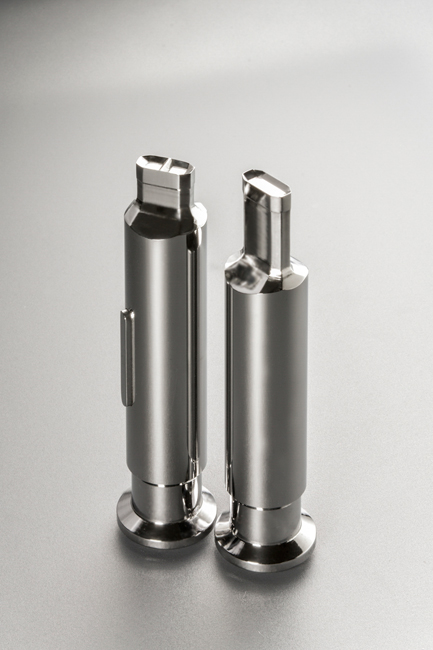

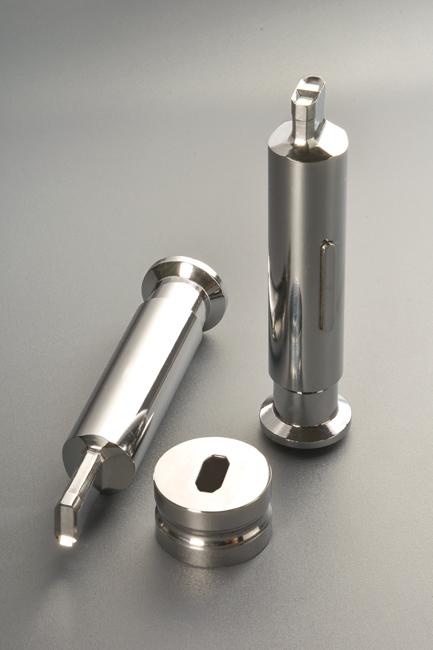

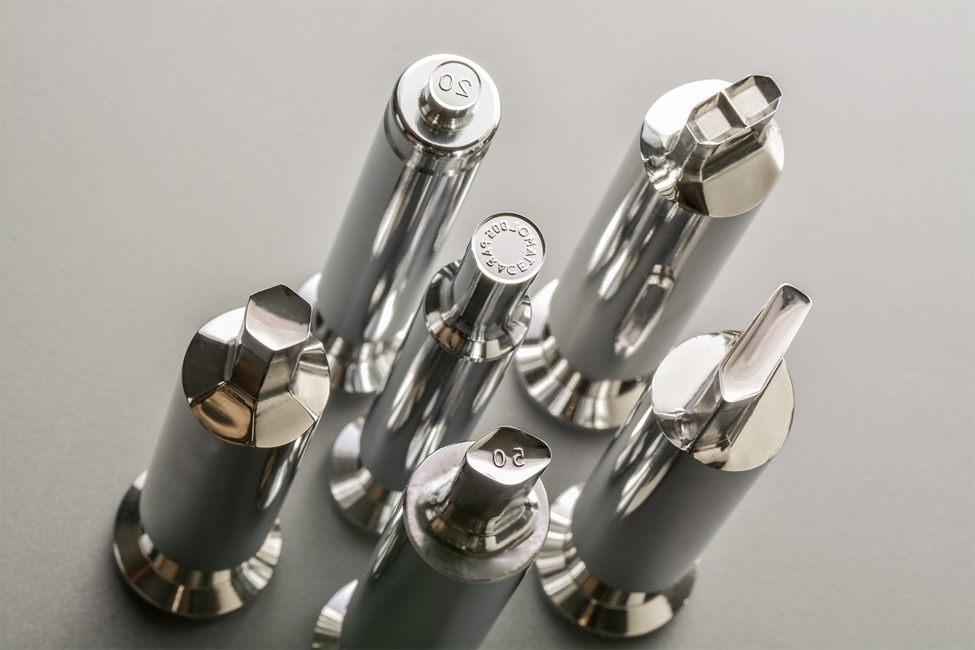

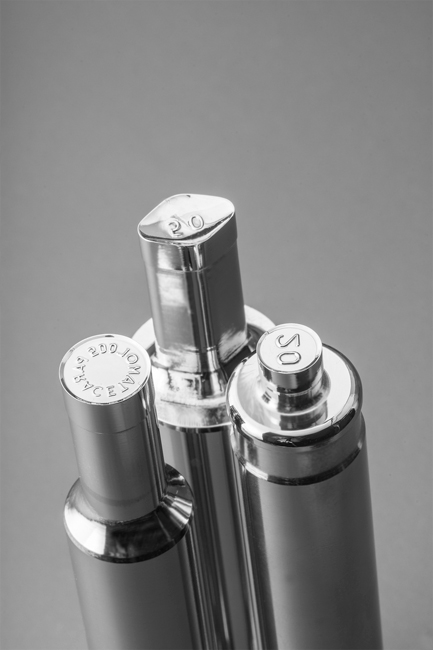

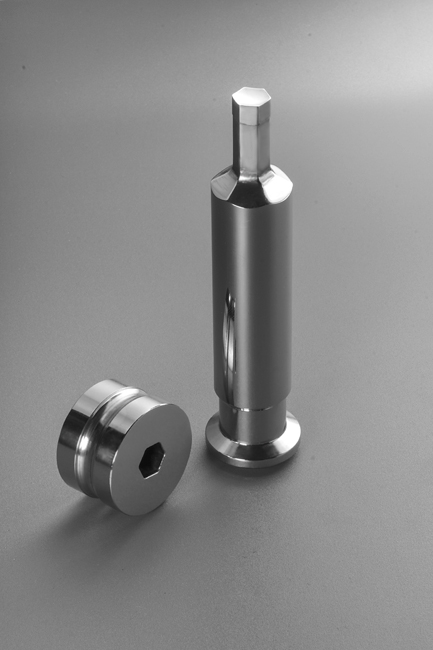

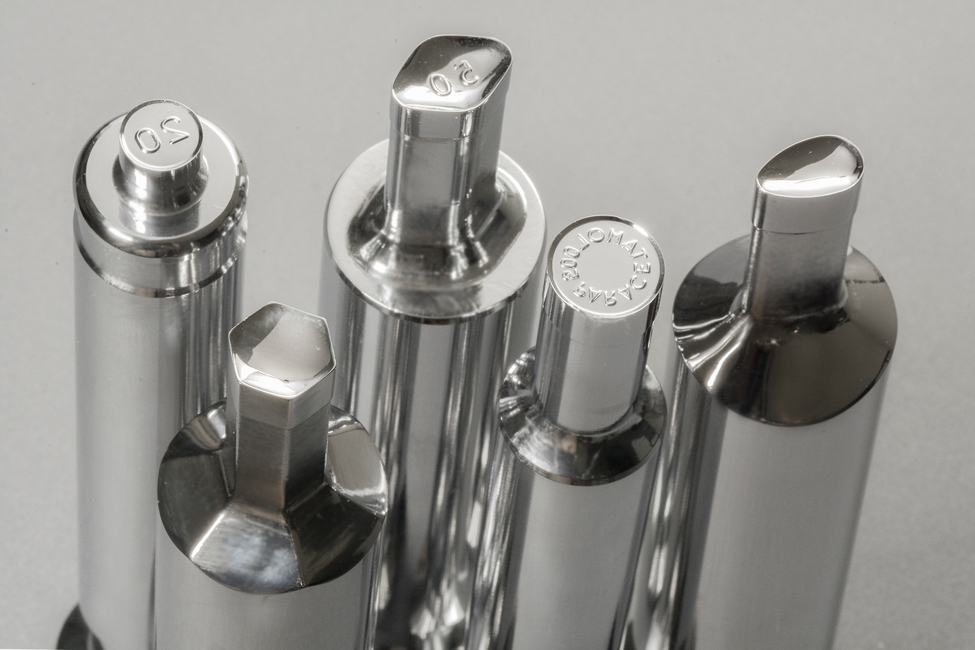

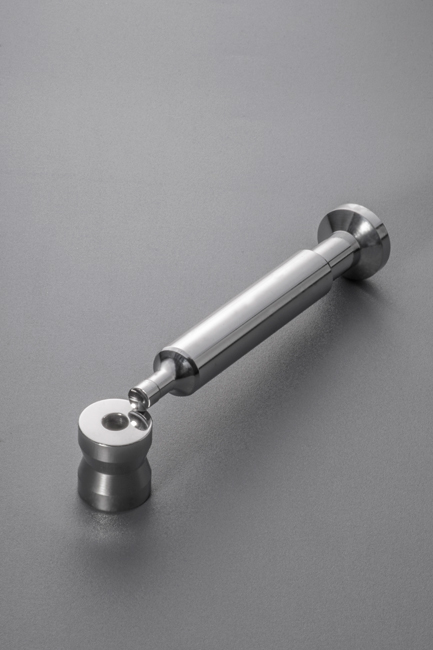

Single Tip Punches
- Reduction tooling cost
- Easy to set up
- Faster Production time

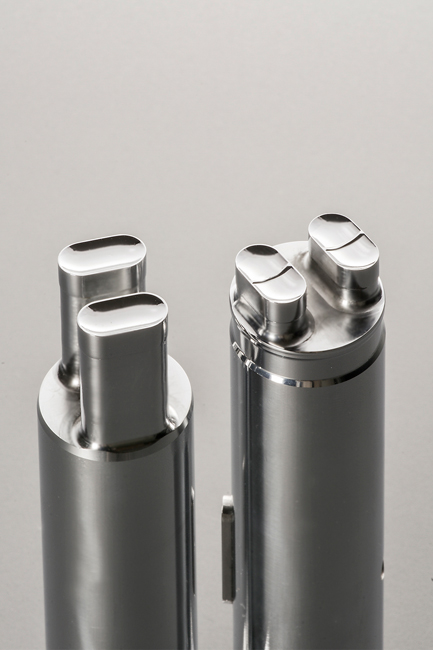

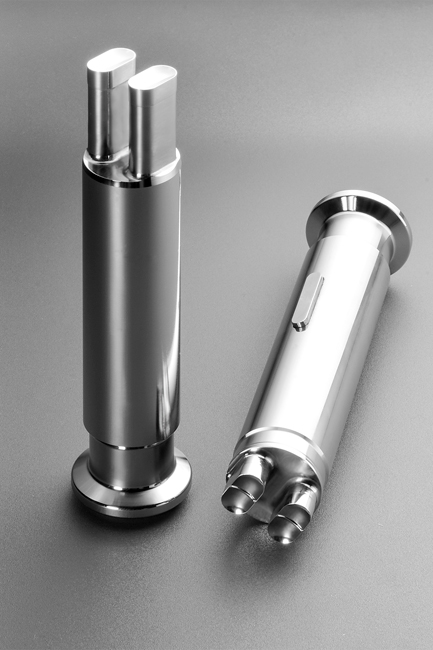

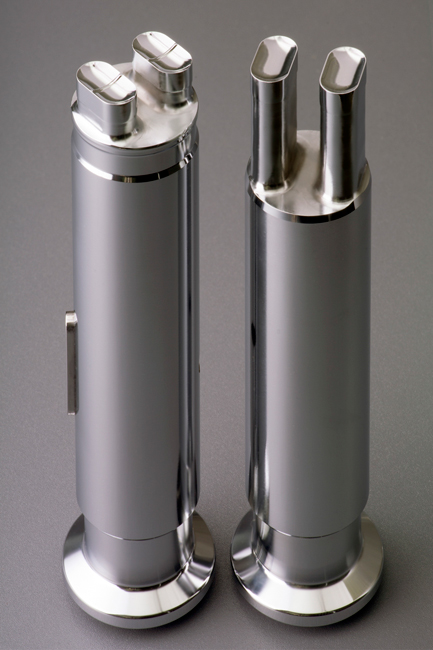

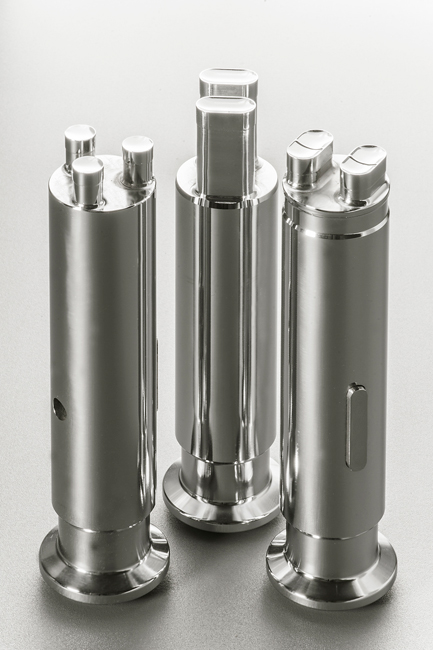

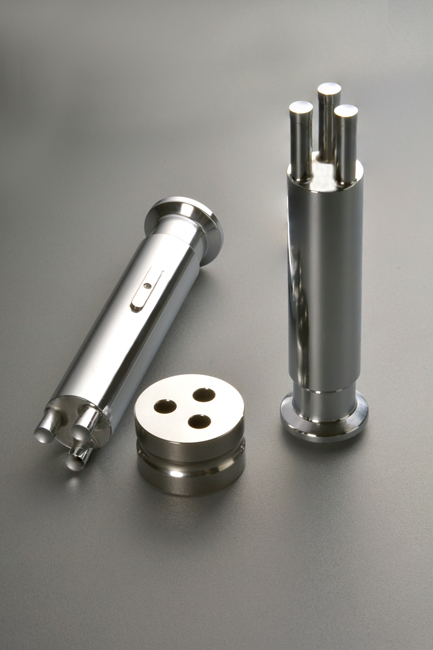

Multi Tip Punches
- Increase in Production capacity atleast double or more than that depend upon tablet size and the number of tips.
- Reduction in production time.
- Less maintenance
- In short : Save time with minimum cost…..

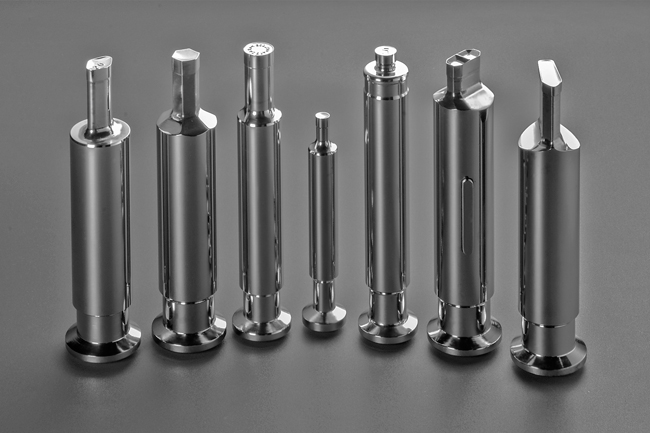

Types of Tooling…
The basic standard tooling is round and shaped tooling manufactured by following the TSM and EURO standard to suit any tablet press globally.
Following are the different types oftooling with their dimensions
| Tooling | D | B | DB | BB |
| Punch Dia ( in mm) | 25.4 | 19 | 25.4 | 19 |
| Die Dia (in mm) | 38.10 | 30.16 | 30.16 | 24 |
| Die Height (in mm) | 23.81 | 22.22 | 22.22 | 22.22 |
Non standard tooling also can be manufacturedas per the need of customer.
TYPES OF COATING
Durability & Performance of punches and dies are achieved with following types of coatings..
- Hard Chrome Plating ( HCP )
- Chromium Nitride Coating ( CRN )
- Multi layer Chromium Nitride coating
